Power Cord Flexibility Test Equipment for Non-Detachable Plugs and Sockets

Power Cord Flexibility Test Equipment for Non-Detachable Plugs and Sockets

Product information:

Standard:

IEC60884-1:2006<Plugs and socket-outlets for household and similar purposes- Part1:General requirements>clause 23.4

IEC60745-1:2006<Safety of hand-held motor operated electric tools Part1:General requirements>clause 24.12

Test Samples & Limitations:

Non-detachable power plugs (or terminals) and non-detachable portable socket-outlets

Hand-held electric tools

Application:

Used to test the flexing endurance of the power supply flexible cord at the point where it enters the appliance, verifying its reliability.

Test Principle:

The motor drives the rotary disc to rotate, applying a load to the flexible cord and supplying the rated voltage. The sample is flex left and right at a set rate and angle until the preset number of cycles is reached or the flexible cord breaks, at which point the machine automatically stops.

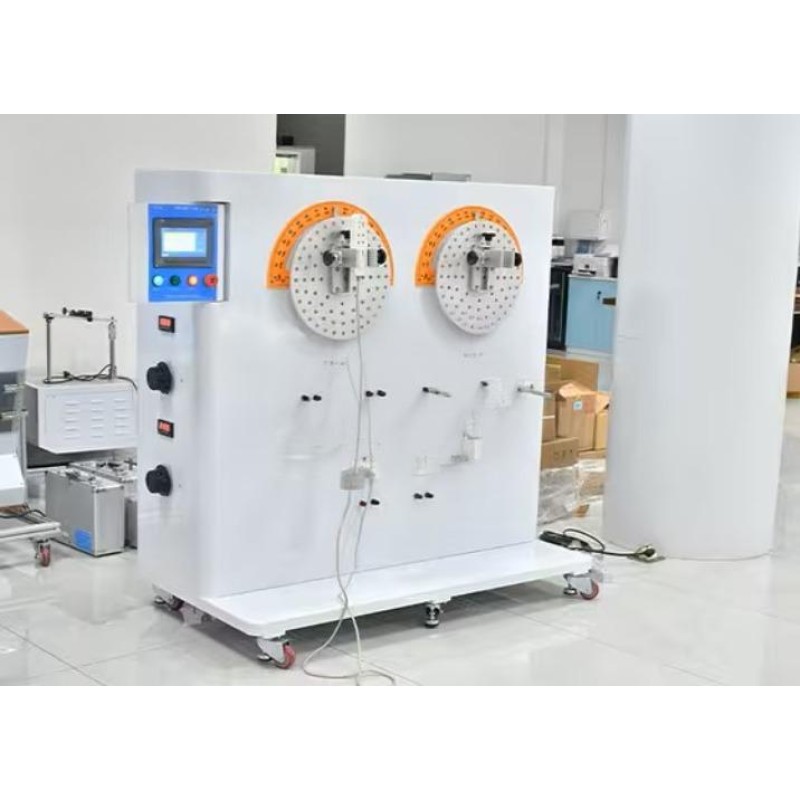

Structure:

Driven by a servo motor, with a large-size aluminum mounting disc for test samples. The design ensures that the oscillation axis aligns as closely as possible with the cord entry point, minimizing lateral displacement of the cord and load.
